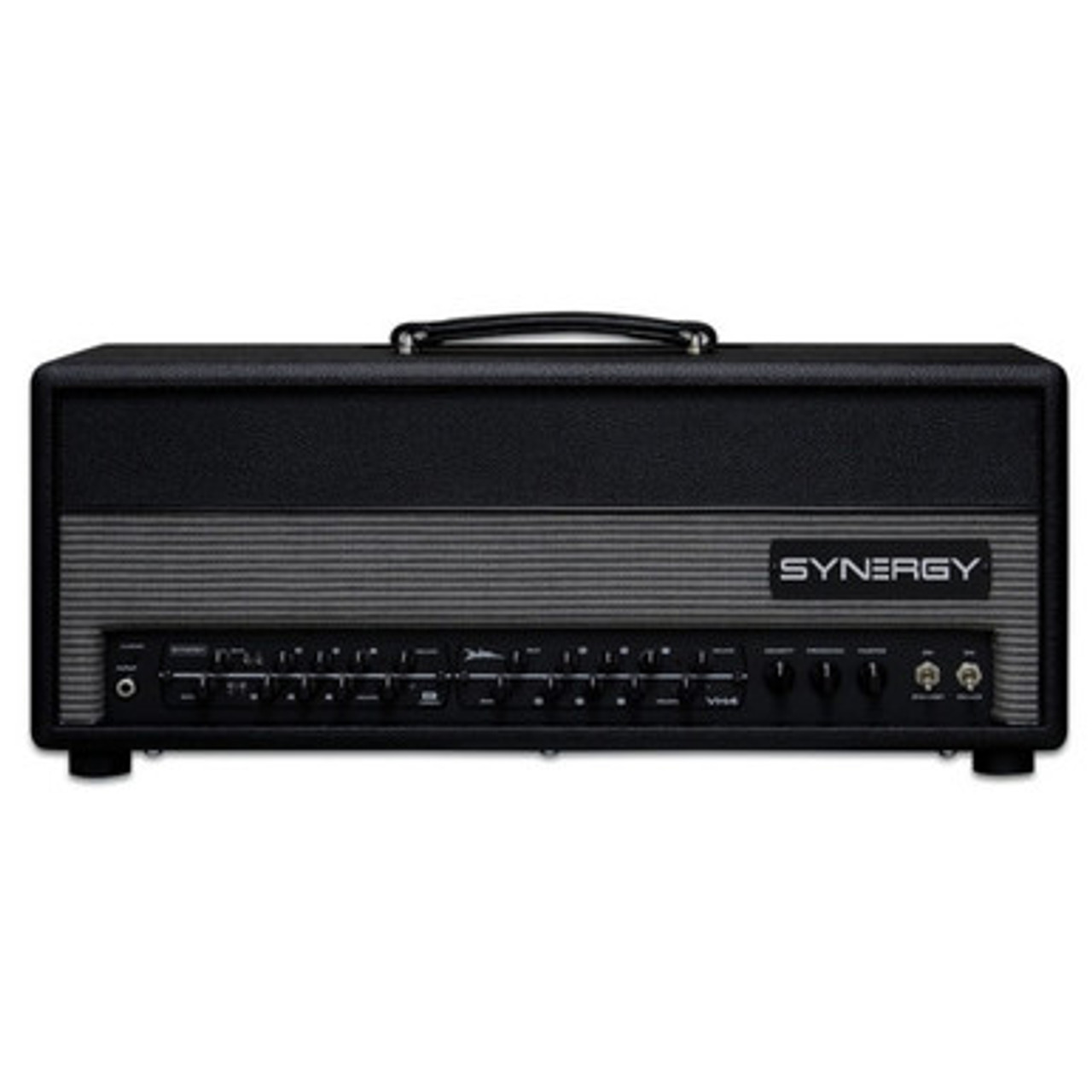

Presenting the Synergy SYN-50 50 Watt Modular all-tube Head.
If you want the power of the Synergy platform but prefer to stay with a straightforward, tube amp-based rig, the SYN-50 Dual Module 50W All-tube Head is for you. Based around an 6L6 power section, the SYN-50 is capable of singing with the best amps out there. The head boasts docks for two of the Synergy preamp modules, adding up to four foot-switchable channels that have been voiced by some of the most legendary amp designers in the business.
While the SYN-50 is as easy to use as any amp head, it boasts immaculate cabinet simulated direct output, MIDI programming, and a transparent effects loop that makes it as useful in the home studio as it is screaming through an arena.
Key features of the SYN-50:
If you want the power of the Synergy platform but prefer to stay with a straightforward, tube amp-based rig, the SYN-50 Dual Module 50W All-tube Head is for you. Based around an 6L6 power section, the SYN-50 is capable of singing with the best amps out there. The head boasts docks for two of the Synergy preamp modules, adding up to four foot-switchable channels that have been voiced by some of the most legendary amp designers in the business.
While the SYN-50 is as easy to use as any amp head, it boasts immaculate cabinet simulated direct output, MIDI programming, and a transparent effects loop that makes it as useful in the home studio as it is screaming through an arena.
- Synergy modular preamp system in a 50-watt tube head
- Two preamp module docks allow you to customize your amp’s tone
- Powered by 2 x 6L6s and 3 x 12AX7s
- Transparent effects loop with level switch
- Global control over Presence, Density, and Master Volume
With two docks for Synergy preamp modules, the SYN-50 tube amp head offers up to four programmable channels that can be selected on the fly. Try the T/DLX and Diezel VH4 modules to go from California cleans to ferocious high-gain. Or maybe you’d prefer to pair our Morgan AC and Friedman BE modules for various shades of British-style chime and crunch. And swapping the modules couldn’t be easier. Simply loosen the thumbscrews and change out the module for a different tone. With the SYN-50, you’ll have the power and tones of Friedman, Morgan, Soldano, and more at your beck and call.
The SYN50 features a patent pending technology that “senses” which preamp modules are being installed into it. Once a module is detected, the SYN50 adjusts the cathode biasing circuitry on the built in 12AX7 tube, to best match the original amplifier channel design on which it’s based.
With so much tonal power and so many sonic options onboard the SYN-50, we made sure to offer you two flexible ways to control it. The Synergy 4F 4-button foot controller is essentially a fully programmable MIDI controller. From the factory the four buttons recall the channels on your preamp modules. But with a simple procedure, you’re able to program the pedal to your needs. If that still isn’t enough, the Dual Module 50W All-tube Head is fully MIDI capable. And because it accepts both 5- and 7- pin connectors, it works with almost every MIDI controller out there.
PLEASE NOTE: In order to use the SYN-50 you have to have 2 Synergy Preamp modules installed in it (Sold Separately)
Synergy hardware and interchangeable pre-amps are protected under US patent.
California Prop 65 warning
The SYN50 features a patent pending technology that “senses” which preamp modules are being installed into it. Once a module is detected, the SYN50 adjusts the cathode biasing circuitry on the built in 12AX7 tube, to best match the original amplifier channel design on which it’s based.
With so much tonal power and so many sonic options onboard the SYN-50, we made sure to offer you two flexible ways to control it. The Synergy 4F 4-button foot controller is essentially a fully programmable MIDI controller. From the factory the four buttons recall the channels on your preamp modules. But with a simple procedure, you’re able to program the pedal to your needs. If that still isn’t enough, the Dual Module 50W All-tube Head is fully MIDI capable. And because it accepts both 5- and 7- pin connectors, it works with almost every MIDI controller out there.
PLEASE NOTE: In order to use the SYN-50 you have to have 2 Synergy Preamp modules installed in it (Sold Separately)
Synergy hardware and interchangeable pre-amps are protected under US patent.
California Prop 65 warning
FRONT PANEL
Input
Channel/Store switch (toggles between the channels of the Synergy preamp modules, or is used to store midi assignments)
Global Density, Presence and Volume.
When storing a MIDI command, press down the channel select switch until the LEDs on the Synergy Preamp channels blink, indicating a program change has been accepted.
REAR PANEL
MIDI IN and Thru (can also be used with a 4 button midi footswitch for channel switching)
MIDI channel select
Speaker Outputs
Impedance Switch
XLR DI output with Level
Ground Lift and Cab-Sim Bypass switches
FX Send and Return with a level switch
Dimensions: 10″(L) x 25.25″(W) x 10″(H)
Weight: 42 lbs.
Input
Channel/Store switch (toggles between the channels of the Synergy preamp modules, or is used to store midi assignments)
Global Density, Presence and Volume.
When storing a MIDI command, press down the channel select switch until the LEDs on the Synergy Preamp channels blink, indicating a program change has been accepted.
REAR PANEL
MIDI IN and Thru (can also be used with a 4 button midi footswitch for channel switching)
MIDI channel select
Speaker Outputs
Impedance Switch
XLR DI output with Level
Ground Lift and Cab-Sim Bypass switches
FX Send and Return with a level switch
Dimensions: 10″(L) x 25.25″(W) x 10″(H)
Weight: 42 lbs.
