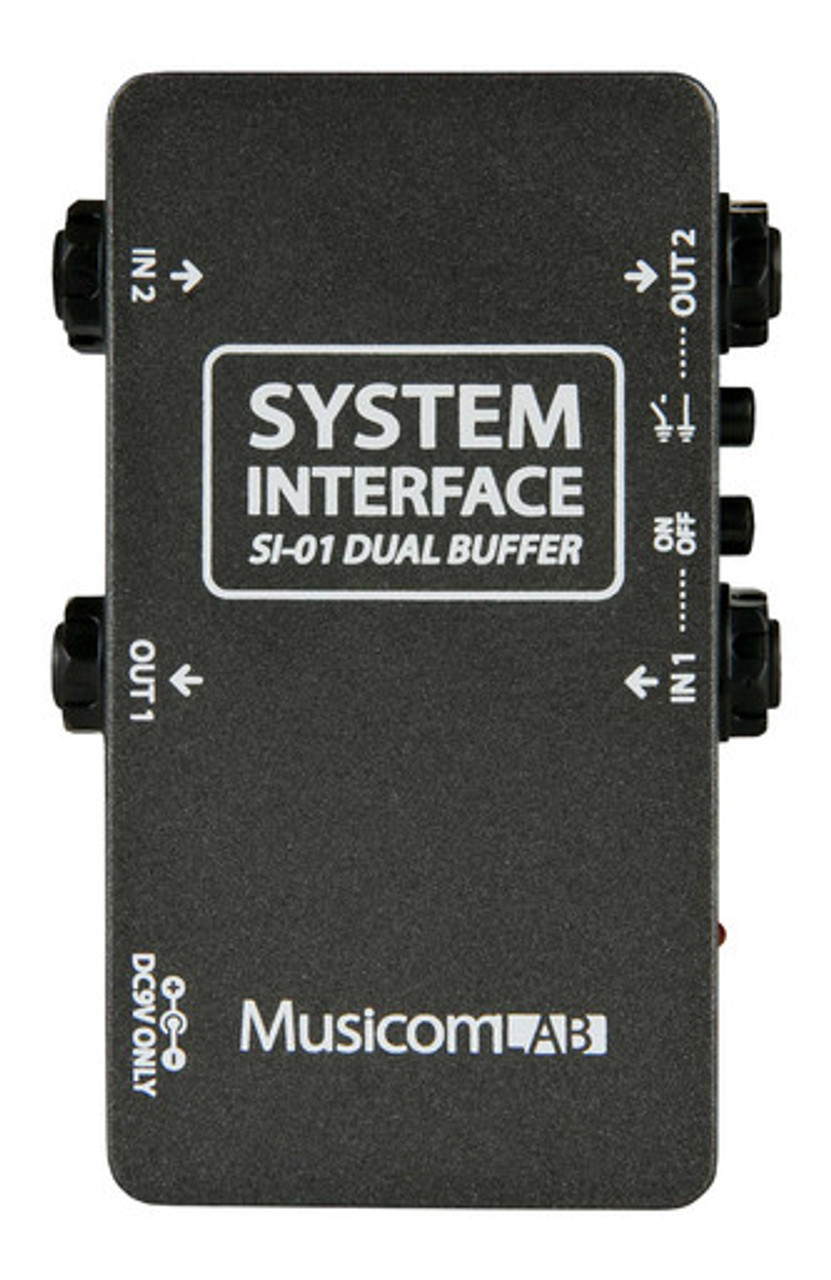

Presenting the new MusicomLAB SI-01 System Interface Dual Buffer.
The SI-01 features Two high-quality buffers.
The SI-01 features Two high-quality buffers.
The First buffer is based on Discrete Class-A circuitry.
The Second buffer is based on Low-Noise Op-Amp.
The SI-01 System Interface is designed to prevent the loss of signal level, high frequency and low end punch that is caused by impedance mismatch and cable capacitance.
Some Fuzz or Wah pedals don’t like to be fed with a buffered signal. For this reason, the first buffer can to be bypassed.
You can also avoid Ground Hum/Noise that may occur when two buffers are used for different signal routing, because the second buffer is supplied with fully isolated power.
The Second buffer is based on Low-Noise Op-Amp.
The SI-01 System Interface is designed to prevent the loss of signal level, high frequency and low end punch that is caused by impedance mismatch and cable capacitance.
Some Fuzz or Wah pedals don’t like to be fed with a buffered signal. For this reason, the first buffer can to be bypassed.
You can also avoid Ground Hum/Noise that may occur when two buffers are used for different signal routing, because the second buffer is supplied with fully isolated power.
IN1 / IN 2 Impedance: 1 MΩ
OUT1 / OUT2 Impedance: 100 Ω
Buffer 1 Maximum Audio Signal Level: +8 dBu
Buffer 2 Maximum Audio Signal Level: +18 dBu
Powered by 9VDC(center negative) 45mA
Dimensions : 72(W) x 113(D) x 31(H) mm 2.9(W) x 4.5(D) x 1.2(H) inches
Weight : 180 g / 0.4 lb
