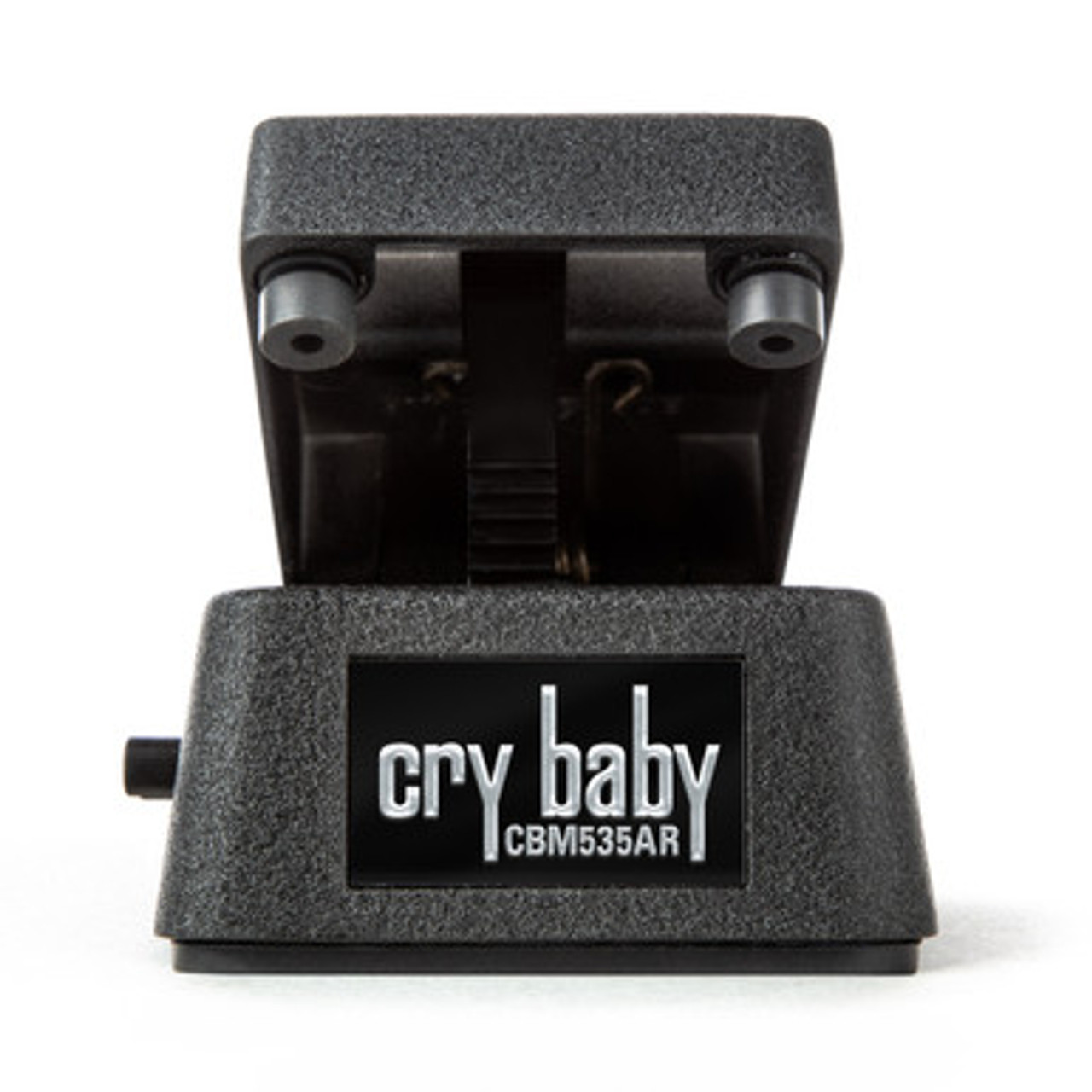

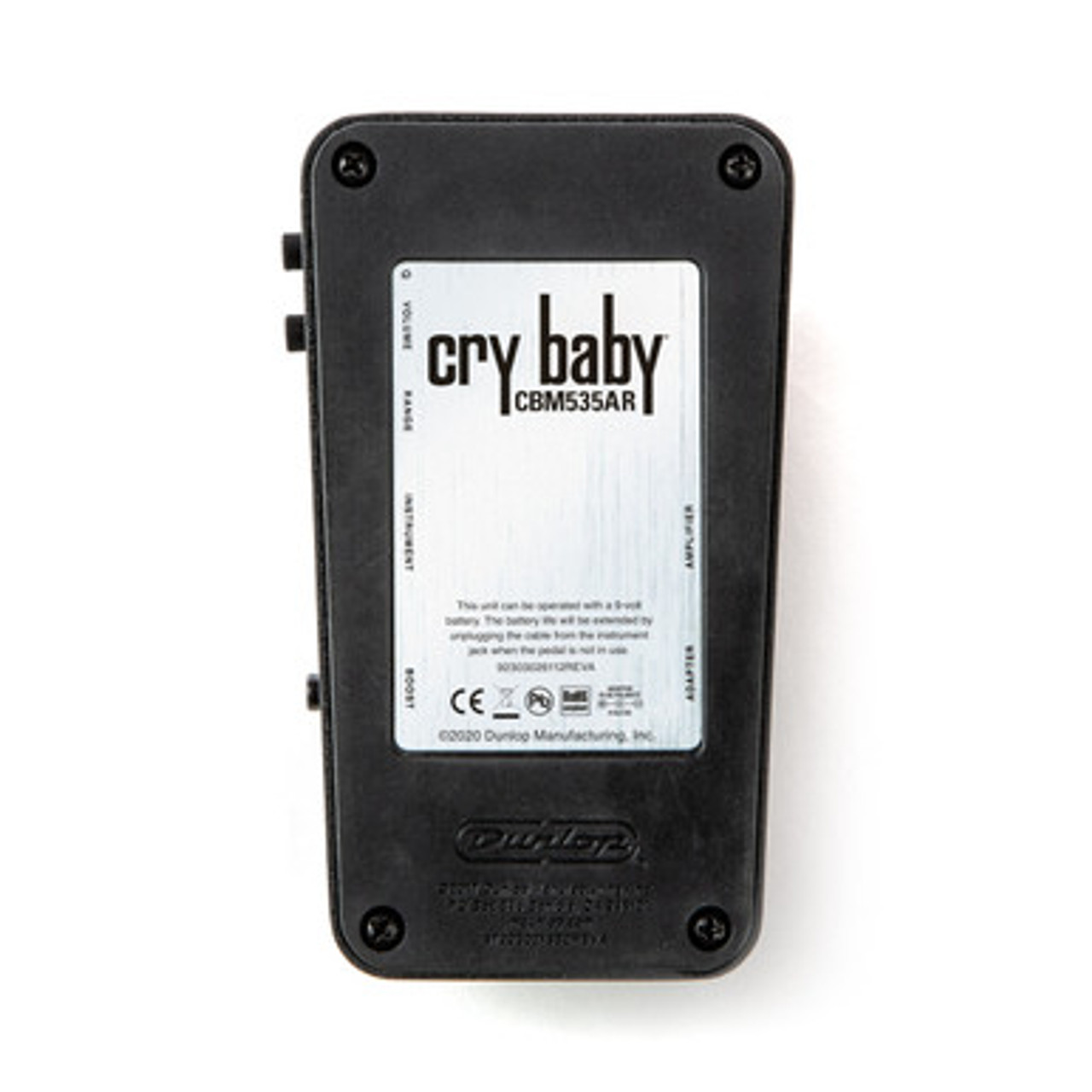

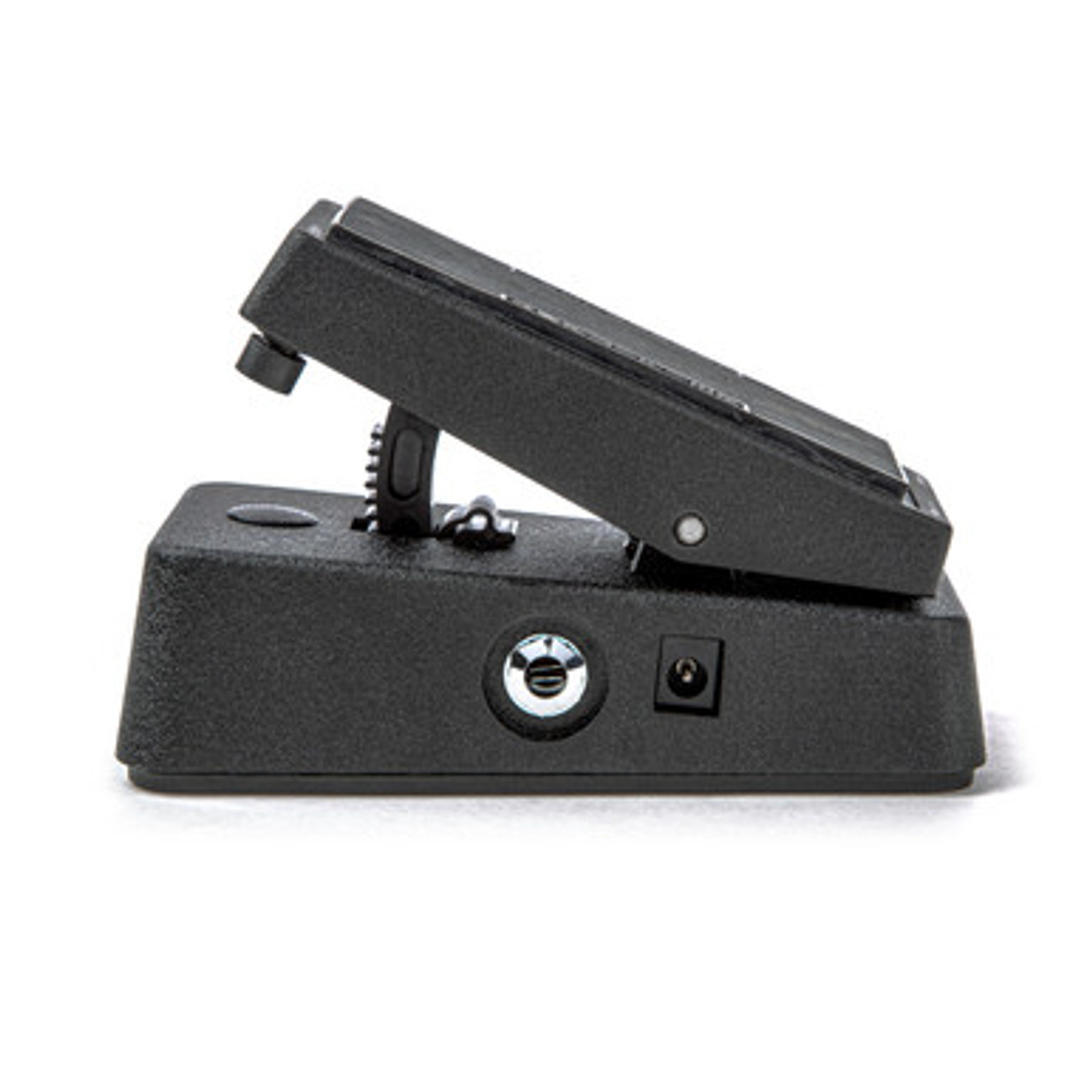

Presenting the Jim Dunlop CBM535AR Cry Baby Mini 535Q Auto Return Wah Pedal, the compact version of the 535Q.
The Cry Baby Mini 535Q Wah provides the perfect balance of wah control and pedalboard-efficiency. Set the tonal character of your sound with the Range Selector, which allows you to choose one of the standard 535Q Wah’s four most popular sweep ranges. With the Q control, you can shape the wah’s response, from a narrow bandpass that emphasizes higher end harmonics to a wide bandpass that emphasizes lower end harmonics.
If you want to bump yourself up to the front of the mix, just crank the Volume control and then kick the Boost switch to engage the level change. There’s a handy LED next to the Boost switch that lets you know when it’s active.
With auto-return switching, adding some of that magical Cry Baby expression wherever you need it is just a matter of pushing down on the toe of the pedal to engage the effect and backing off to disengage it. Just step in, electrify your audience, and step out while you give them some time to collect themselves.
The Cry Baby Mini 535Q Wah comes in at half the size of the standard version, and on the inside, it sports the legendary red Fasel® Inductor. If you want to save space while retaining ultimate control over your Cry Baby Wah sound, this pedal belongs on your pedalboard.
IMPEDANCE
Input Impedance: 1 MΩ
Output Impedance: <1.5 kΩ
NOISE FLOOR*
Heel Down: -90 dBV
Toe Down: -97 dBV
*A-weighted
WAH RANGE SELECTOR
Range Selector Switch Position (1 towards heel, 4 towards toe)
1st Position: 270 Hz to 1300 Hz
2nd Position: 320 Hz to 1650 Hz
3rd Position: 360 Hz to 1840 Hz
4th Position: 420 Hz to 2100 Hz
Filter Gain**: 16 dB
**Q control at maximum clockwise, boost off
Boost Control Range: 0.1 dB to 17 dB
Bypass: True Hardwire
Current Draw: 3 mA
Power Supply: DC 9 volts
