Radial Headlight Guitar Amp Selector

Presenting the Radial Headlight Guitar Amp Selector.

The Headlight has a compact footprint that will fit on any pedalboard, but it's still powerful enough to drive up to four amplifiers without sacrificing on tone. The input features a class-A buffer along with Drag Control load correction that allows you to optimize the impedance for your pickups and recreate the feel of plugging your guitar directly into an amp. Custom transformers isolate the outputs to prevent buzz and hum from ground loops, with ground lift switches to further alleviate noise problems. Should you really want to get loud, the mute footswitch can be configured as an 'all on' switch, activating all four amp outputs simultaneously.

• Four output amp switcher with sequential switching
• Isolated outputs to eliminate hum and buzz
• Compact footprint easily fits on a pedalboard.
• Mute footswitch for silent on-stage tuning

Driving four different amps on stage.

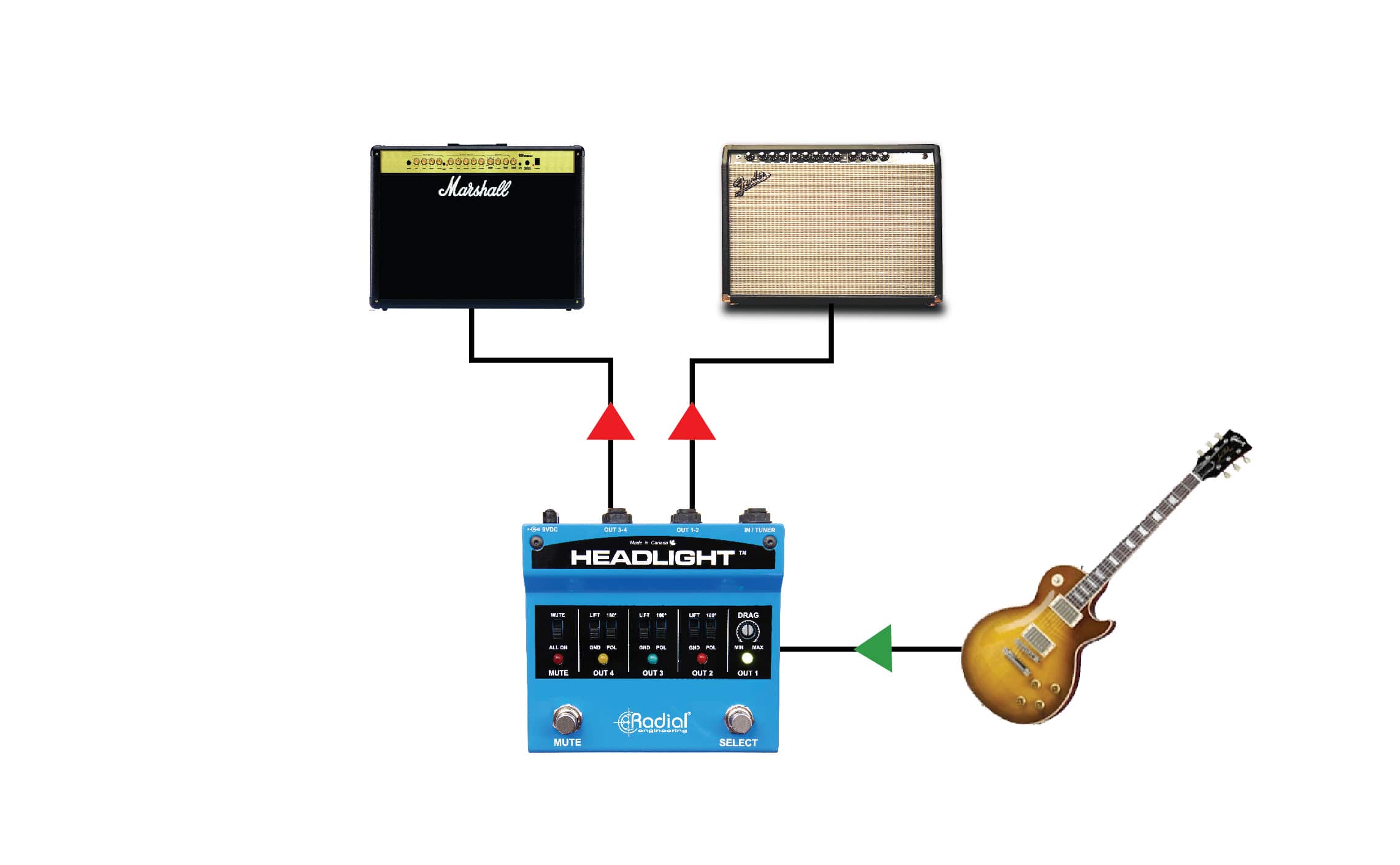

Using the Headlight as an ABY

Connect your two amps using outputs 1 and 2 and select between them using the right-hand footswitch. Set the left-hand footswitch to ALL-ON and when depressed, both amps will play. The isolation transformers will prevent buzz and hum from ground loops when both amps are on.



Using Headlight with DI Boxes and Amplifiers

Using the Headlight you can feed both direct boxes and amplifiers. The outputs from the direct boxes can be sent directly to the mixer and stage amps can be mic'd.



SPECIFICATIONS
Audio circuit type: Classic Class-A FET
Frequency response: 30Hz to 30kHz
Total Harmonic Distortion (THD+N): 0.01%
Dynamic range: 116dBu
Maximum input: +8dBu
Input impedance: 20k to 1M Ω
Gain - CH1 to CH4: -0.5dB
Clip level - output: +7dBu
Noise floor: -112dBu
Intermodulation distortion: 0.02%
Phase deviation:-1.35º @ -20dBu/1kHz
Crosstalk: <-92dB
Power: 9V / 80mA Center pin negative (not included)
Construction: 14 gauge steel chassis & outer shell
Size (LxWxD): 5” x 4.9” x 2” (127 x 124 x 51mm)
Weight: 2lbs (907 grams)
Warranty: Radial 3-year, transferable
